830ACC2: Rectangular OBD – Cable in Air-stream

Submittal FormBowden Installation Instructions

Description

Young Regulator has developed the Bowden Cable Controls to remotely adjust these inaccessible balancing dampers from a distance as great as 50 feet by using a rack and pinion controller and a flexible casing and wire assembly. This solution provides precise control of inaccessible balancing dampers.

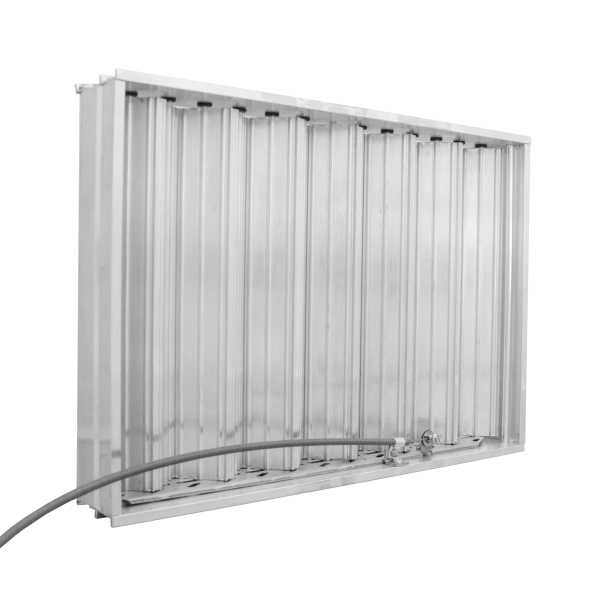

The Young Regulator model 830ACC2 is a rectangular opposed blade damper that is controlled from inside the air stream with the Bowden Cable Controller Model 270-­275 or 270-275-ML. This solution provides precise control of inaccessible balancing dampers without disturbing the integrity of the architectural ceiling. The rack and pinion controller is accessed with our model 030-12 control wrench through the opening in the slot diffuser.

The Bowden Casing and Wire’s outer spiral sheathing is secured to the damper frame and the inner wire is fastened to the slide. The push-pull motion of the Bowden Rack and Pinion Controller opens and closes the damper. BCW length is limited to 20′ when it runs inside the air stream.

Additional information

Frame

.050 Aluminum Extrusion with Stiffening Channels

Blade

.050 Aluminum Extrusion with Stiffening Channels

Slide

20 ga. Stainless Steel

Blade Bushings

Individual, UL 94V2 Nylon
