3085NM: OBD w/Plate (Controls by Others)

Submittal Form

Description

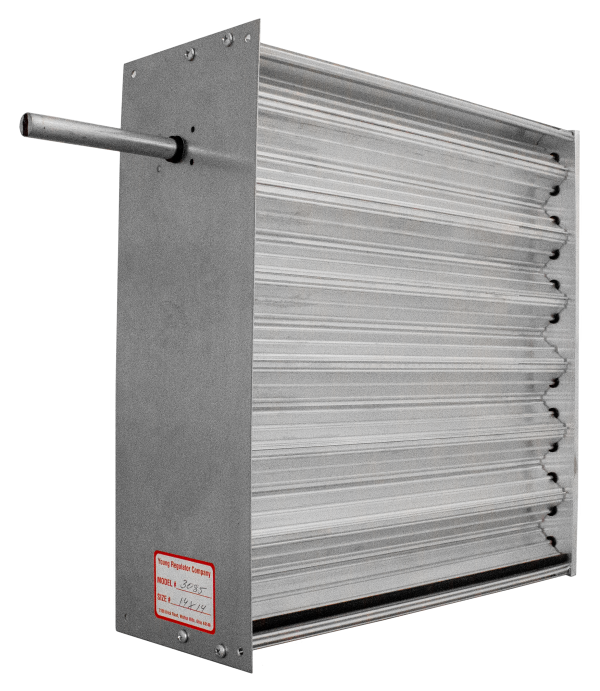

The Young Regulator 3085-NM is an opposed blade rectangular damper designed for low pressure, forced air, HVAC systems. A 5″ wide plate with an extended shaft makes this an ideal solution for control contractors to install their own actuator and HVAC controls. Individual synthetic blade bushings provide smooth, quiet operation for the life of the damper. This is a high free area damper for lower pressure drop across the damper.
The damper is only 2 1/8″ wide with the blades contained within the frame, ideal where space limited. It is easily installed into the duct work by cutting a 2 1/4″ slot and slipping the damper inside. The damper is secured to the side of the duct with 4 screws.

Additional information

Frame

.050 Aluminum Extrusion with Reinforcing Channels

Blade

.050 Aluminum Extrusion with Reinforcing Channels

Shaft

½” Plated Steel, Extended 4"

Slide

Stainless Steel

Blade Bushing

Individual Synthetic

Mounting Plate

5" Wide x Damper Height, Extended Plate Available

Low Leak Seals

Not Available

Frame Width

2 1/8" Wide

Blade Width

1.438" – Contained Within Frame

Max Size

24" x 24" Side Controlled, 36" x 24" Bottom Controlled

Min Size

3" x 3"
