270-896: Threaded Ceiling Cap

Submittal FormBowden Installation InstructionsInstallation Instructions
SKU: 270-896 Category: Tags: , , , ,

Description

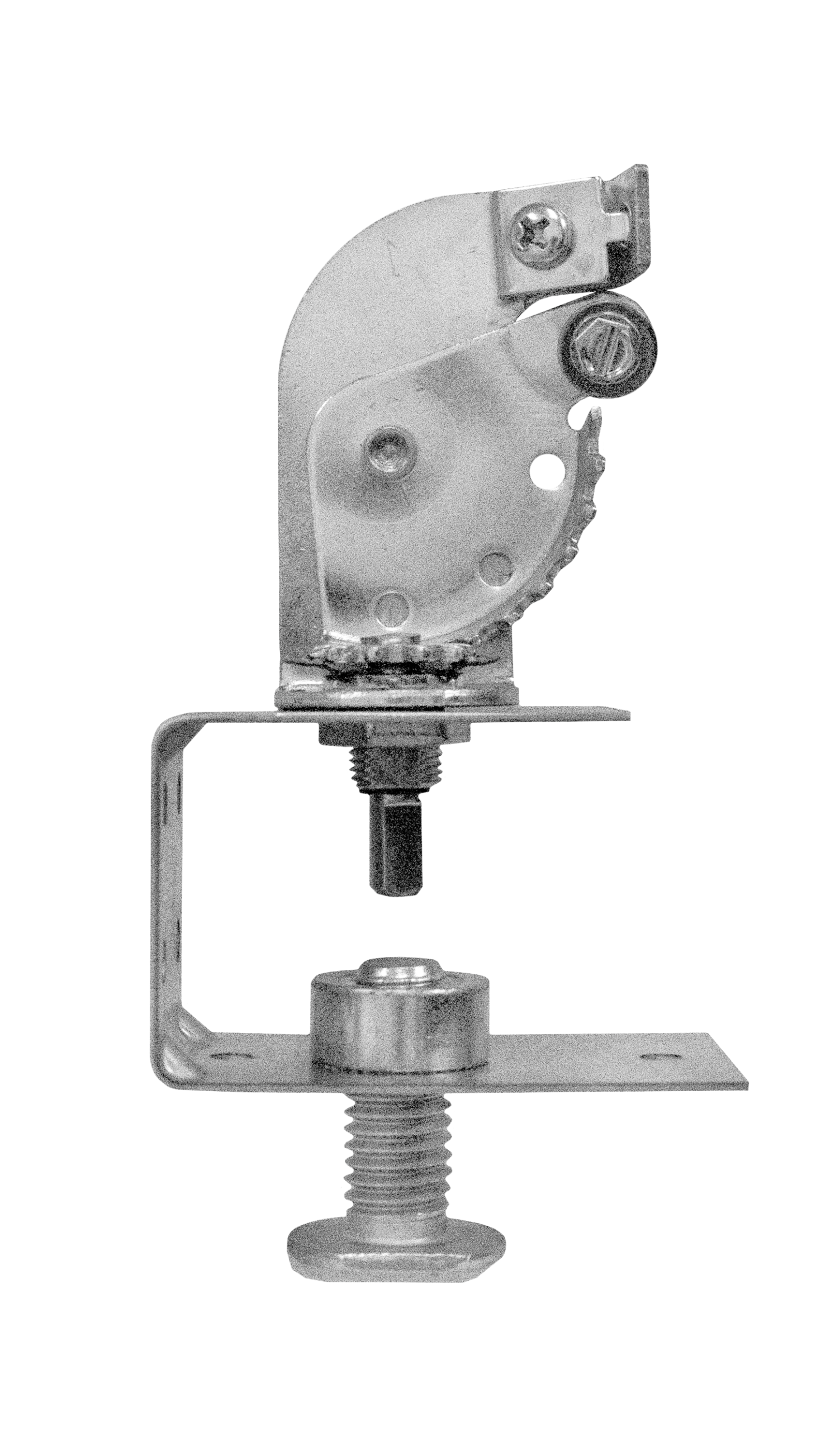

Balancing dampers located in inaccessible spaces are now easily controlled with the Young Regulator Bowden Remote Cable Assemblies. Access is concealed in the ceiling, inside plenums, or moved to a convenient area such as a nearby mechanical room or above a lay in ceiling. Access doors can be eliminated for architectural aesthetics. A flexible casing and wire, (PT #BCW, ordered separately) up to 50’ long runs from a steel rack and pinion locking controller to a damper where the rotary motion of the rack and pinion controller is converted to a push-pull motion with a lever arm. The 270-896 provides access through a 7/8” screw cap concealed in the drywall ceiling. The rack and pinion controller is mounted atop a convenient “C” bracket that fastens to a ceiling support stud above the ceiling. The bracket receives the threaded cap. An optional tamper proof torques head pan screw cap is available for secure environments.

Additional information

Rack and Pinion

14 ga. Galvanzied Steel

C Bracket

18 ga. Galvanzied Steel

Threaded Cap

Zinc Plated Steel
