270-301: Remote Cable Controller w/ Ceiling Cup & Cover

Submittal FormBowden Installation InstructionsInstallation InstructionsCover Plate Options


Balancing dampers located in inaccessible spaces are now easily controlled with the Young Regulator Bowden Remote Cable Assemblies. Access is concealed in the ceiling, inside plenums, or moved to a convenient area such as a nearby mechanical room or above a lay in ceiling. Access doors can be eliminated for architectural aesthetics.

A flexible casing and wire, (PT #BCW, ordered separately) up to 50′ long runs from a steel rack and pinion locking controller to a damper where the rotary motion of the rack and pinion controller is converted to a push-pull motion with a lever arm.

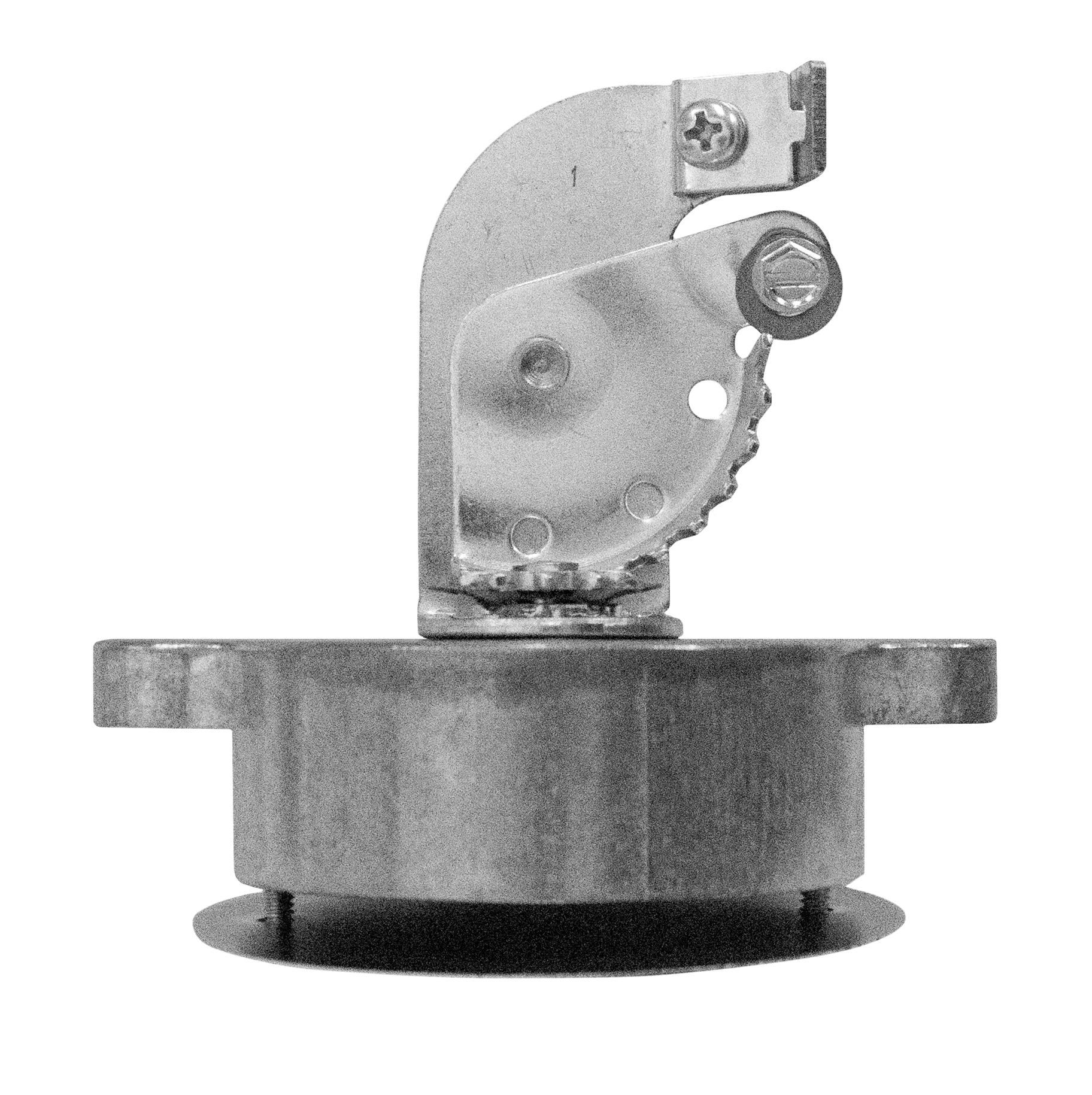

The 270-301 consists of the 270 rack and pinion controller mounted atop a die cast cup that is embedded in a sheetrock or gypsum board ceiling so that the unit is flush with the finished surface. The cup is 2 5/8″ in diameter and 15/16″ deep, with a 3″ cover plate that is secured by two 6-32 x 5/8″ stainless steel machine screws that are removed for damper adjustment.

Additional information

Rack and Pinion

14 ga. Galvanized Steel

Die Cast Cup

2 5/8" Diameter

Cover Plate

3" Zinc Plated
